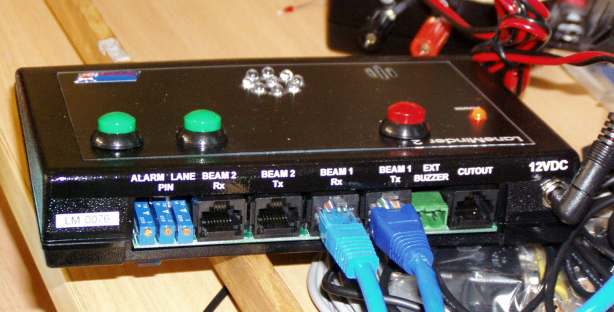

View of the LaneMinder2 Control Box from the rear showing cable connections

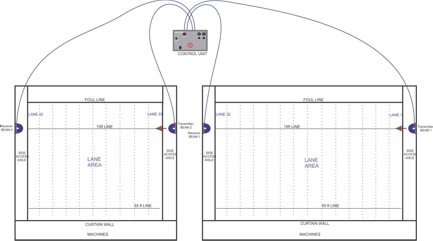

Example Dual Zone layout

• Manufactured from high quality components
• Quick field installation
• 12 month warranty
• IR dual-beam units are mounted on custom brackets with pc board for RJ-45 socket, LED indicator, audible alarm and intelligent control

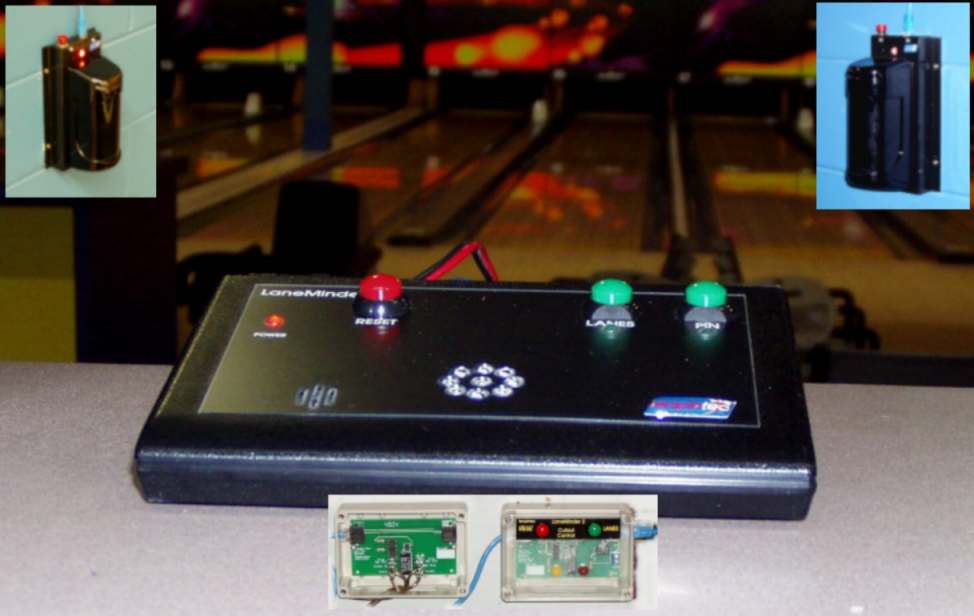

• Control unit is microcontroller based and houses an audible and visual alarm
• Standard LaneMinder will span up to 40 lanes - higher power IR units are available for larger lane areas
• The LaneMinder2 is currently installed in around 80% of bowling centres in Australia including all AMF centres. Many more units are installed in the UK, Europe and the US.
• Control Unit has provision for two IR beams, Beam 1 (infra-red beam transmitter and receiver pair positioned about 5 feet past foul line) and Beam 2 (optional infra-red beam transmitter and receiver pair positioned as per beam 1 if there is a second lane zone or at another location in the bowling centre).

LaneMinder2 Standard

Beam 1 Transmitter (Tx) and Receiver (Rx) Modules are fixed to the side walls of the centre, one at each end, at somewhere between 5 and 15ft down the lanes.

Height of the beams over the lanes should be about 18 inches to 2 feet, so that the beam is not interrupted by a lane machine. This should catch anyone, including a child who tries to walk down the lane.

Buzzers sound and a high intensity LED array flashes on the control unit when Beam 1 is broken.



Contact your public risk insurer and ask if they give premium discounts where a public intrusion warning device such as LaneMinder2 is installed.

LaneMinder2 Standard kit consists of:

• 1 x LaneMinder2 Control Unit
• 1 x LaneMinder2 dual-beam Transmitter Module
• 1 x LaneMinder2 dual-beam Receiver Module
• 2 x pre-made 30m Cat-5 cable
• 2 x pre-made 20m Cat-5 cable
• 2 x Cat-5 in-line joiners
• 1 x 12VDC power supply

Customers can order this kit without Cat-5 cables to significantly reduce shipping weight.

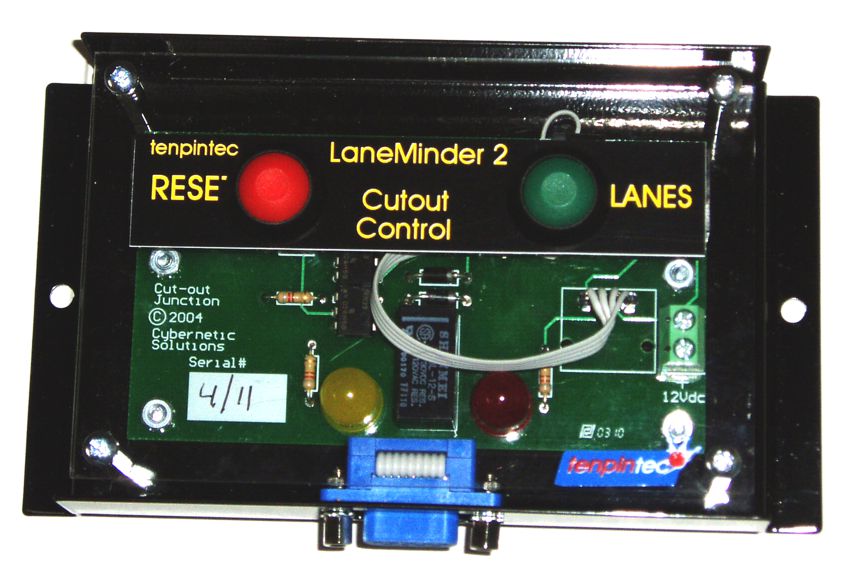

Cutout Control Module - This module is still available (was orignally required to control the Cutout-2 Modules) because it is still required as an interface between the LaneMinder2 Control Box and the Remote Control Kit. It also has "Lanes" and "Reset" buttons to duplicate those on main Control Unit.

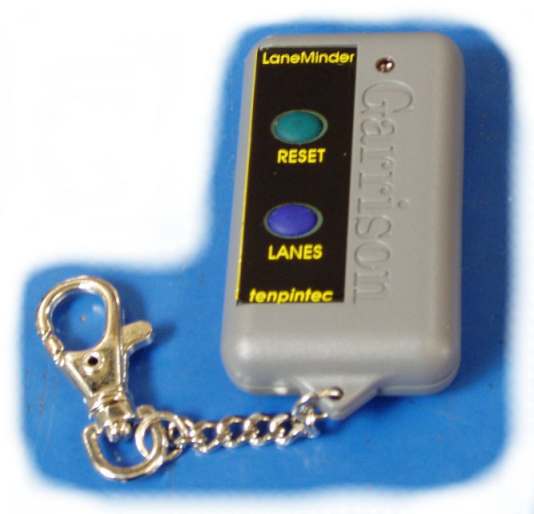

Remote Key (Two Function Remote Transmitter)

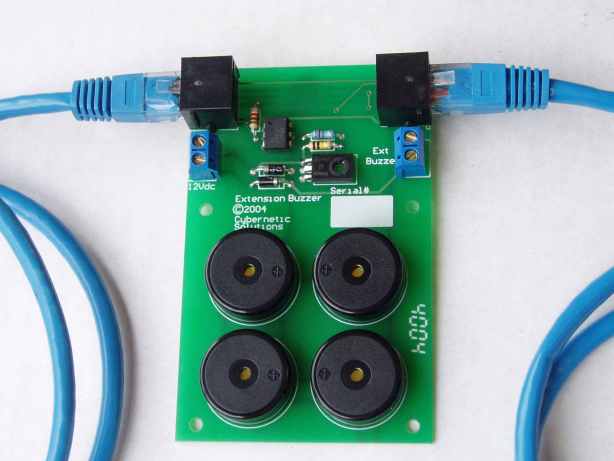

Buzzer Module - powered from the CAT-5 cable or separate 12VDC to provide some extra noise where needed

Fitting guides:
	LaneMinder2		Revised	07 JAN 2023
	LaneMinder2 Remote Buzzer		Revised	07 JAN 2023
	LaneMinder 2 FAQ		Revised

Ordering information
Part No.	Description
CS-LM2	LaneMinder 2 - Standard (kit)	5.0kg
	Overseas customers can order without Cat-5 cables to reduce cost and shipping weight
	Accessories and Spare Parts
CS-LM2-B2	LaneMinder 2 - Beam 2 Kit	4.5kg
CS-LM2-TX	LaneMinder 2 - Transmitter Module
CS-LM2-RX	LaneMinder 2 - Receiver Module
CS-LM2-CC	LaneMinder 2 - Cutout Control Module
CS-LM2-C2	LaneMinder 2 - Cutout-2 Module
CS-LM2-C8	LaneMinder 2 - Cutout-8 Module
CS-LM2-RC	LaneMinder 2 - Remote Control Kit (comes with 2 Remote Keys)
CS-LM2-RC-S	LaneMinder 2 - Remote Key
CS-LM2-BZ	LaneMinder 2 - Buzzer Module
