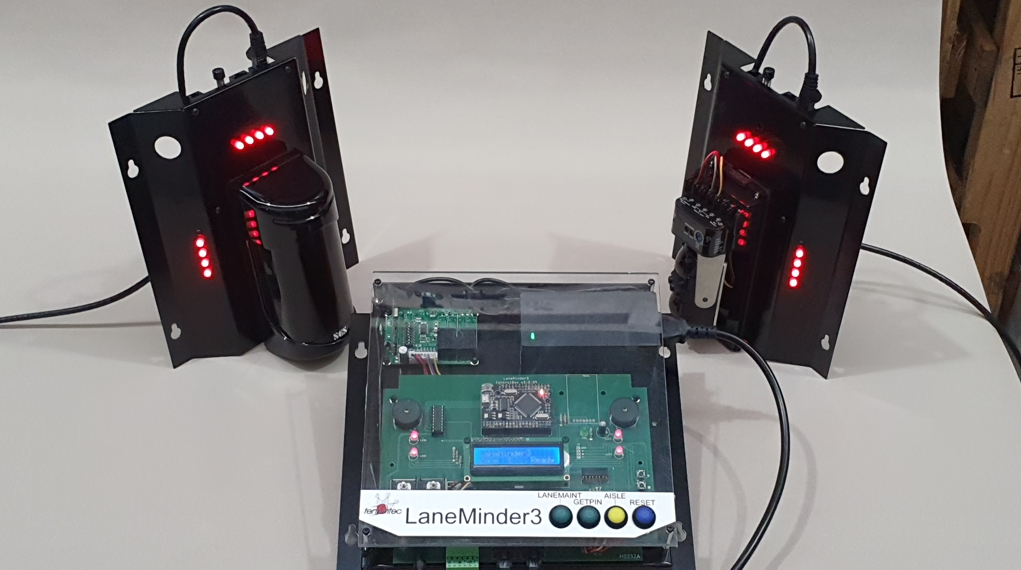

LEDs glowing dull RED - LaneMinder3 Ready

LEDs flashing bright RED - LaneMinder3 Triggered

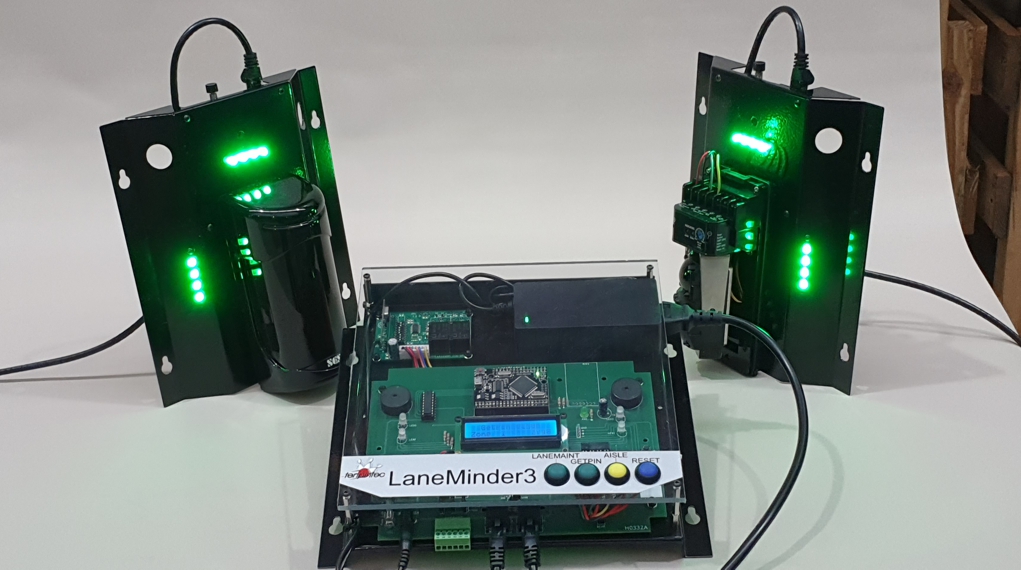

LEDs flashing GREEN - LaneMinder3 'disarmed' timer counting down

LEDs flashing AMBER - LaneMinder3 'disarmed' timer 30 sec to go
                  before resuming Ready state

• Manufactured from high quality components
• Quick field installation
• 12 month warranty
• IR dual-beam units are mounted on custom brackets with pc board for RJ-45 socket, LED indicator, audible alarm and intelligent control
• Control unit is microcontroller based and houses an audible and visual alarm
• Standard LaneMinder will span up to 40 lanes - higher power IR units are available for larger lane areas
• Around 80% of bowling centres in Australia have a LaneMinder, LaneMinder2 or LaneMinder3 installed. Many more units are installed in the UK, Europe and the US.
• Up to four (4) LaneMinder3 systems can be linked together with each monitoring a Zone of bowling lanes (or some other area where patrons are not supposed to be)..

LaneMinder3 Standard

Beam Transmitter (Tx) and Receiver (Rx) Modules are fixed to the side walls of the centre, one at each end, at somewhere between 5 and 15ft down the lanes.

Height of the beams over the lanes should be about 18 inches to 2 feet, so that the beam is not interrupted by a lane machine. This should catch anyone, including a child who tries to walk down the lane.

Buzzers sound and high intensity LEDs flash when the Beam is broken.

User adjustable (via menu) time-outs for GETPIN and LANEMAINT to allow staff to walk down the lanes.
Green LEDs flash while more than 30 sec of timer is left. LEDs flash amber when less than 30 sec.

Remote Control for RESET and GETPIN (or LANEMAINT) with 2 channel keyfob is included.

Contact your public risk insurer and ask if they give premium discounts where a public intrusion warning device such as LaneMinder3 is installed.

LaneMinder2 Standard kit consists of:

• 1 x LaneMinder3 ControlBox (includes 2 channel remote control for RESET and GETPIN or LANEMAINT)
• 1 x LaneMinder3 dual-beam Transmitter Module
• 1 x LaneMinder3 dual-beam Receiver Module

Cat-6 cables and 24Vdc power supply are available separately.

Coming soon - RemoteAlarm module

Coming soon - FrontDesk module

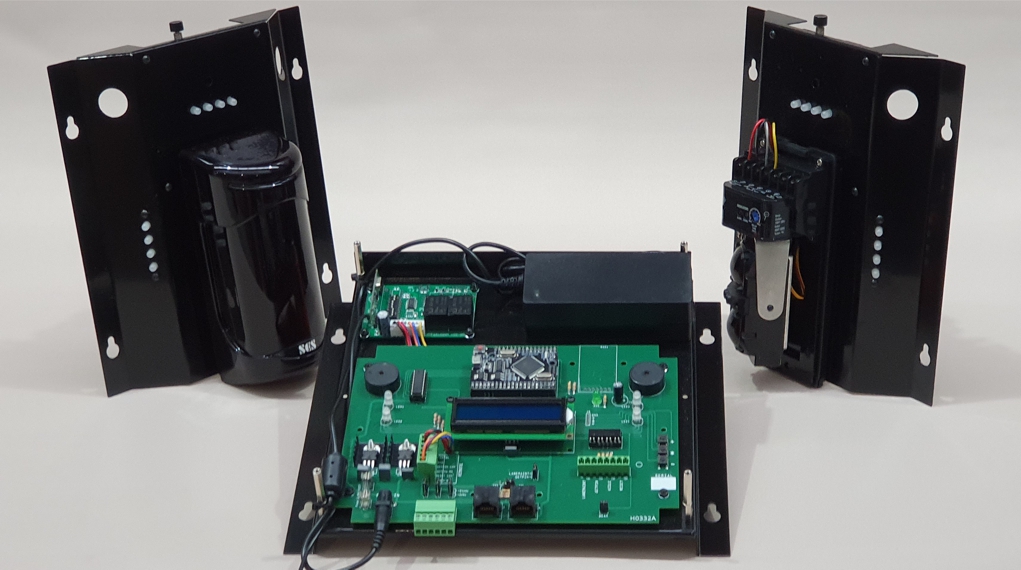

LaneMinder3 with covers off showing some internals
including integrated 24Vdc power supply

Remote Key (Two Function Remote Transmitter)

One key is provided with the LaneMinder3 kit
Additional keys are available separately

Fitting guides:
	LaneMinder3		Revised	02 SEP 2024
	LaneMinder 2 FAQ		Revised

Ordering information
Part No.	Description
CS-LM3	LaneMinder3 - Standard (kit)	5.0kg
	Accessories and Spare Parts
CS-LM3-TX	LaneMinder3 - Transmitter Module
CS-LM3-RX	LaneMinder3 - Receiver Module
CS-LM2-RC-S	LaneMinder2/LaneMinder3 - Remote Key
	LaneMinder3 - RemoteAlarm Module - NEW
	LaneMinder3 - FrontDesk Module - coming soon

Available from
Australia	Cybernetic Solutions/tenpintec	admin@tenpintec.com.au
UK	Bowling Vision/Embassy Services	1227 719799
All other places	Cybernetic Solutions/tenpintec	admin@tenpintec.com.au
