Ball Trigger

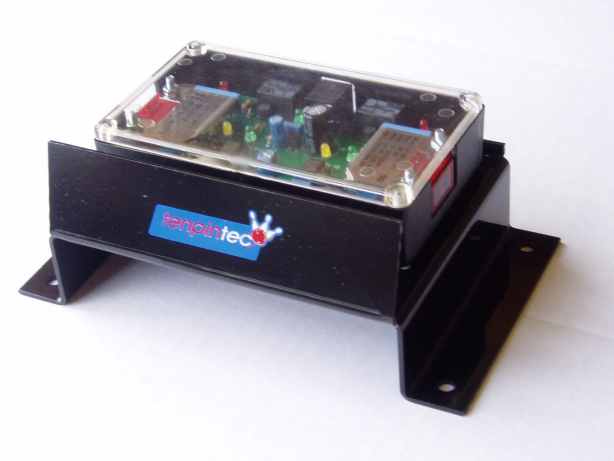

IR Ball Trigger

IR Ball Trigger for AMF Pinspotter machines
Also suitable for Brunswick A Pinsetters (use of Rake Switch recommended)
And some types of Duckpin machines
tenpintec logo

  • Microprocessor controlled
  • Strong 3mm steel mounting base to protect unit
  • Quick field installation - plug-in modular design
  • Breakout (connection) box mounts on curtain wall
  • High quality IR units integrated into main unit which mounts on wide capping
  • Uses reflectors rather than wired receiver units on far side of lane
  • Time delay to trigger is determined by ball speed:
    FAST BALL = short delay
    SLOW BALL = longer delay
  • LED status indicators
  • 12 month warranty
  • Operates on 12Vdc. Power supply is available separately. Several units can be run from one power supply.
SAFETY

  • If the beam is broken for an extended time, the machine will not trigger - this is a safety feature to reduce the risk of a person being hit by sweep. This feature also means that your lane machine will not be hit by the sweep if the machine is still running.


Trigger AMF - kit

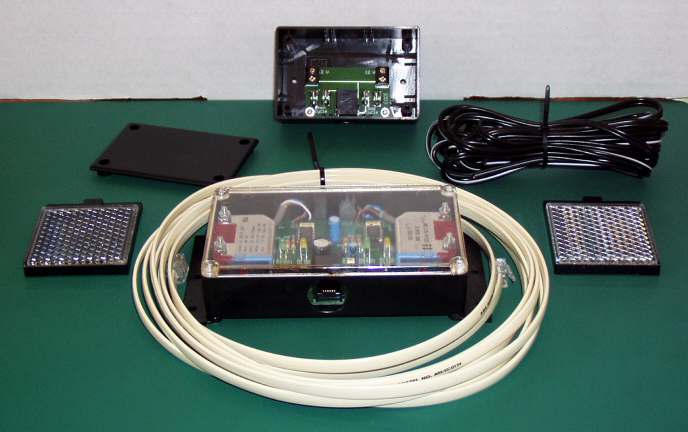

The kit, with IR Trigger, "breakout box", reflectors and cables.



Trigger AMF - Breakout Box

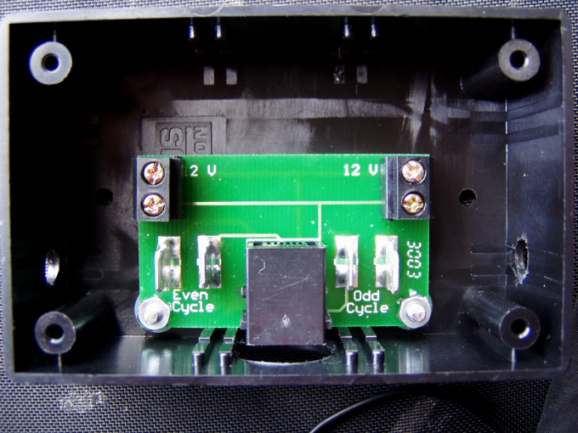

The small "breakout box" that mounts on the curtain wall and provides the connection point between the machine and the IR Trigger

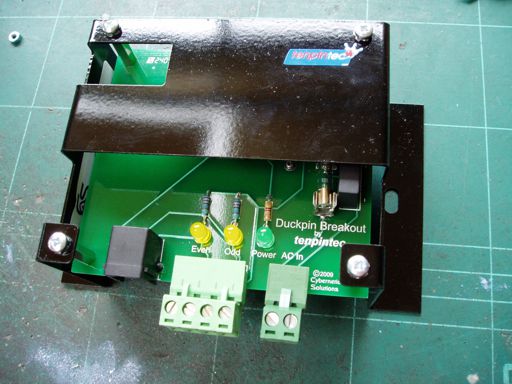

30Vdc Duckpin Breakout Module

Fitting guides:

  AMF 82-70     .pdf diagram
  Brunswick A     .pdf diagram
  Duckpin     .pdf diagram

Ordering information
Part No. Description
CS-TR-A2 IR Ball Trigger - AMF (and Brunswick A) 1.0kg

  Accessories and Spare Parts
H00020-4 Steel Base (for upgrading early IR Triggers)  0.5kg
CS-TR-A2-C Cable Assy - Trigger Unit to Breakout
CS-TR-A2-R Reflector Assy (two reflectors on mounting bracket)  0.1kg
  Reflector (single 50 x 50mm)  0.03kg
CS-TR-BO-12VDC Breakout Box 12Vdc
CS-TR-BO-30VDC Breakout Module - 30Vdc Duckpin



Available from
Australia Cybernetic Solutions/tenpintec admin@tenpintec.com.au


All other places Cybernetic Solutions/tenpintec

Ordering information
