Tenpintec Solid State Electronic Start Switch for Pinspotter Back end Motor by Cybernetic Solutions

Over 12,000 used on bowling machines since 1993
Manufactured from high quality components
Quick field installation
Mechanical switch and centrifugal mechanism no longer required
Suited for capacitor braking
Guaranteed for 12 months
High efficiency
Suitable for 110-115V and dual voltage 115/230V motors
Internal thermal fuse for safety. Acts as a backup in case Klixon fails to cut power to motor in an
overload situation. Double protection for motor windings.
Current sensing technology. More accurate and reliable switching than the more common and cheaper
timer method. Motor starting will be almost instantaneous where motor loads are within tolerance.
Can be used on many Ball Return, Ball Conditioner and Lane Machine motors
Silent operation

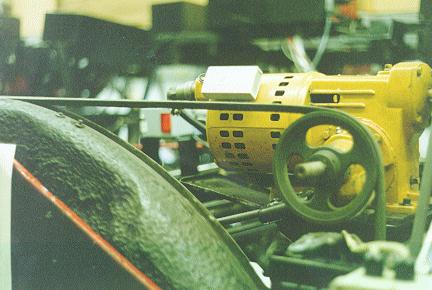

Photo - start switch on AMF 82-30 Pinspotter backend motor

Fitting guides:
Machine	Motor		Supply Voltage
AMF 82-30	GE, Westinghouse, Smith, Franklin	Single Voltage	115
AMF 82-30	GE, Westinghouse, Smith, Franklin	Dual Voltage	115	230
AMF 82-70	GE, Westinghouse, Smith, Franklin	Single Voltage	115
AMF 82-70	GE, Westinghouse, Smith, Franklin	Dual Voltage	115	230
AMF 82-70	National	Single Voltage	115
AMF 82-90	Franklin and Blufton	Dual Voltage	115	230
AMF Ball Return	Baldor	Dual Voltage	115	230
AMF Ball Return	Franklin and Blufton	Dual Voltage	115	230
Brunswick Booster	Howell (thanks James!)	Dual Voltage		230

Ordering information
Part No.	Description
SS110BE	Solid State Start Switch - Backend Motor	0.25kg

	Accessories and Spare Parts

Available from
Australia	Cybernetic Solutions/tenpintec	admin@tenpintec.com.au
USA	QubicaAMF and distributors	Order part no 610 309 046
United Kingdom	Bowling Vision
All other places	Cybernetic Solutions/tenpintec
