MaskMatrix

• MaskMatrixP3 - based on a 64x32 P3 (3mm pixel spacing) RGB LED panel
  Panel size 192mm x 96mm
• See also: MaskMatrixP5 - P5 (5mm pixel spacing) RGB LED panel
  Panel size 320mm x 160mm
• Works on all Pinspotter and Pinsetter models
• Attach to existing mask unit frame
• Easy field installation
• 12 month warranty
• Many colour and display options are selectable by menu buttons located on the pcb
• Display can be factory configured to suit individual requests
• ATMEGA 2560-16AU based microcontroller
• Powered from the Pinspotter or Pinsetter (12-30Vac or dc)
• Optional 12Vdc input (user supplied plugpack) to show lane number while machine is off

MaskMatrix Features

• Colours for each display element are selectable using the menu buttons on the rear pcb
• Lane number only will display when machine is off (if 12Vdc plug pack is connected)
• 8 different colours are available for Lane Number when lane is off
• 8 different colours are available for Lane Number when lane is on
• 1st or 2nd Ball display element will light when machine is turned on
• Several 1st Ball and 2nd Ball colours and formats are menu selectable
• Strike 'X' will display when signal is received from machine
• Strike element colour is user selectable via the menu buttons
• Foul 'F' will display when signal is received from machine
• STOP will flash for as long as the MaskMatrix is receiving input from Pit Signal (Trouble Call)

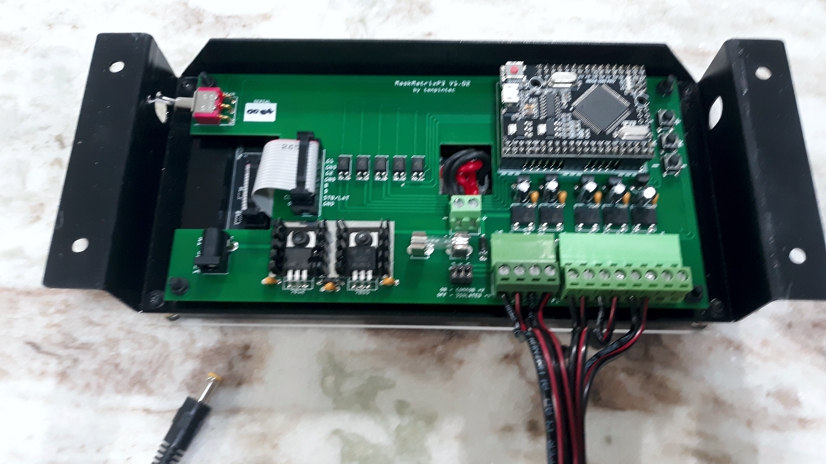

MaskMatrixP3 - rear showing pcb and connections

Connect Pit Signal (Trouble Call) from the machine

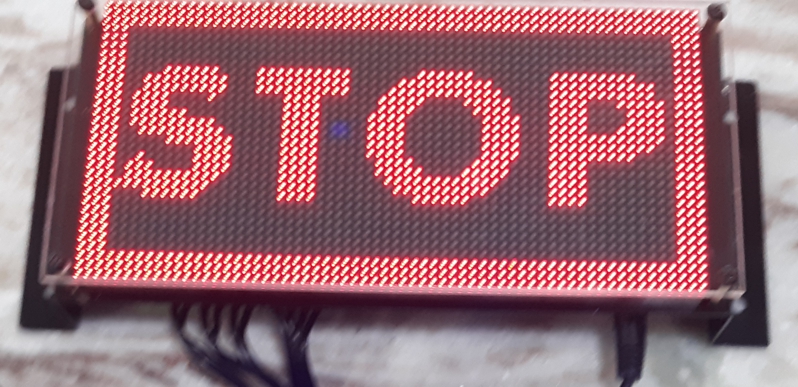

by a Tenpintec TC-MMx module to display a flashing red "STOP"

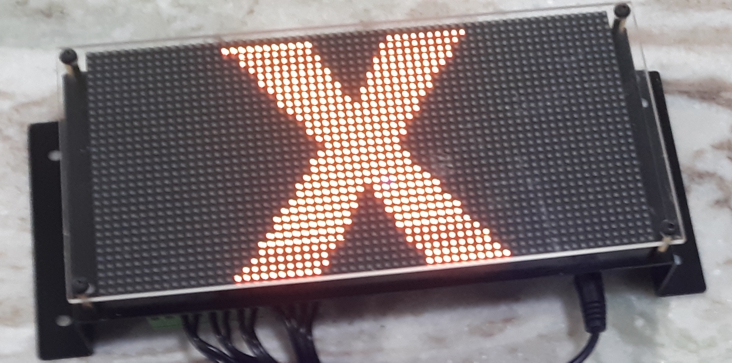

MaskMatrixP3 - STRIKE set to orange

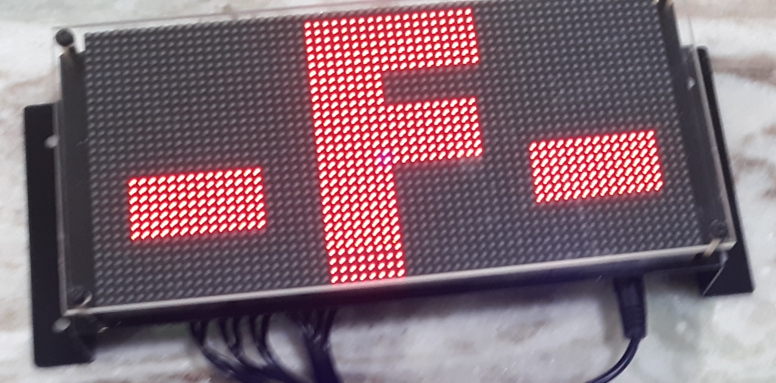

MaskMatrixP3 - FOUL
