LED Mask Unit Display - X
LED Mask Unit Display with Strike and Foul
Selectable colours - suitable for most Pinsetter and Pinspotter machines

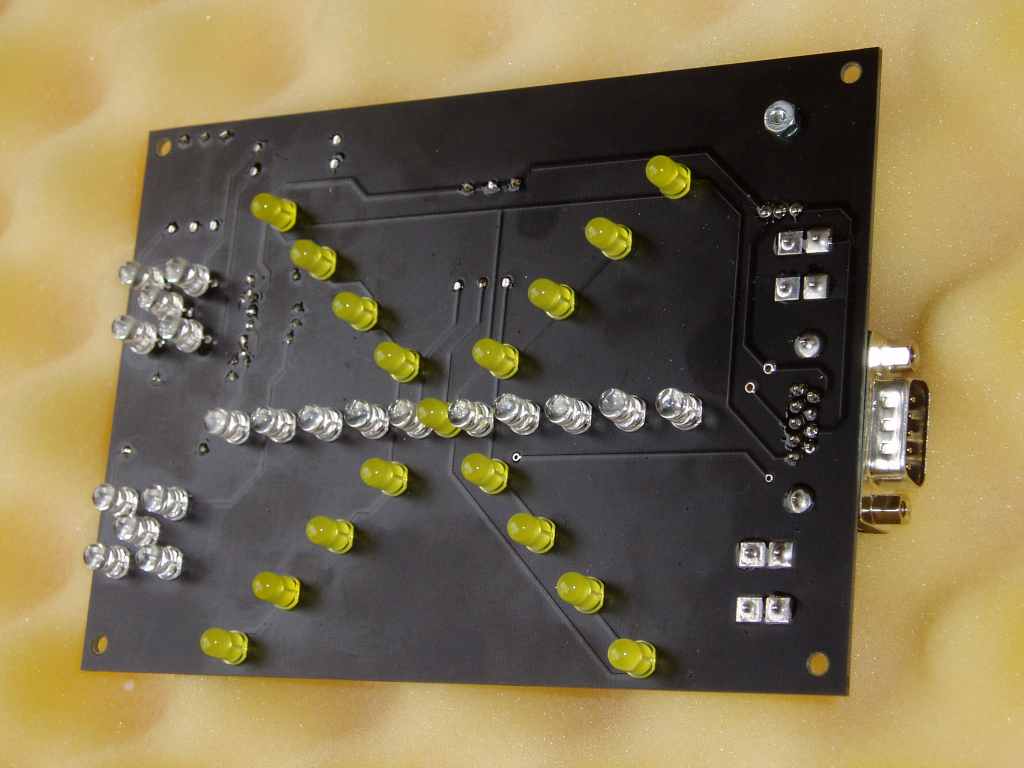

Photo - Older style Mask LED X with yellow X LEDs - new style has all RGB LEDs

tenpintec logo

  • Hi intensity LEDs - expected lifetime 50,000 hours

  • Board width 150mm (5 7/8")
    Board height 105mm (4 1/8")

  • Supplied with 3m (10ft) of 10 way ribbon cable for connection to machine
  • Uses standard D9 connector - note this is not a straight-through connection for AMF 82-90
  • 12 month warranty
The colour of 1st Ball, 2nd Ball, Strike and Foul are each selectable by jumpers on the board
  • Primary selectable colours are Red, Green and Blue
  • Red and Green can be selected together to make Yellow
  • Red and Blue can be selected together to make Purple
  • Green and Blue can be selected together to make Aqua

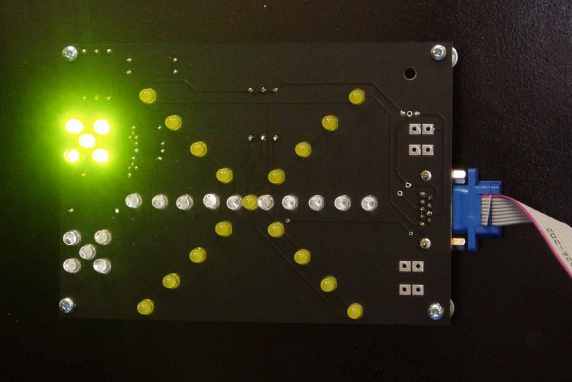

Photo - Mask X with one green LED group - 1st ball

1st Ball - Green selected

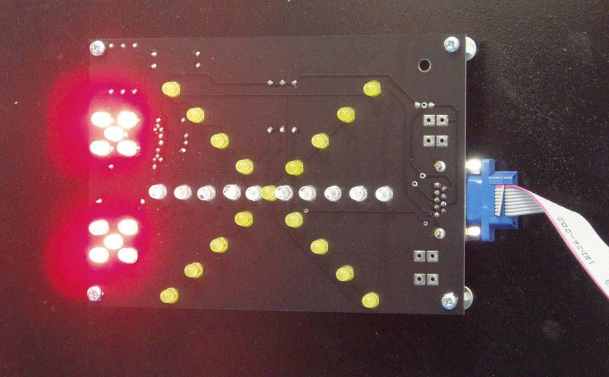

Photo - Mask X with two red LED groups - 2nd ball

2nd Ball - Red selected

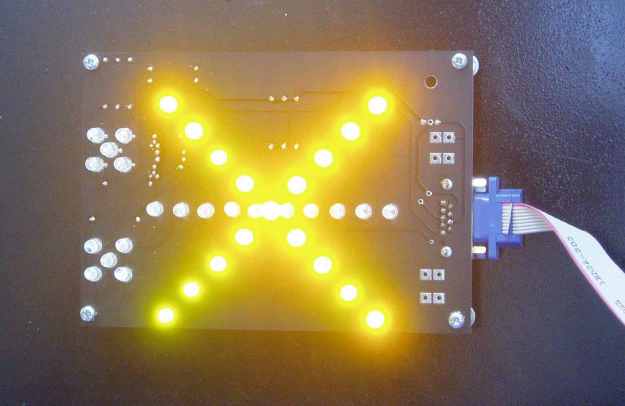

Photo - Mask X with yellow X - strike

Strike - Red and Green selected

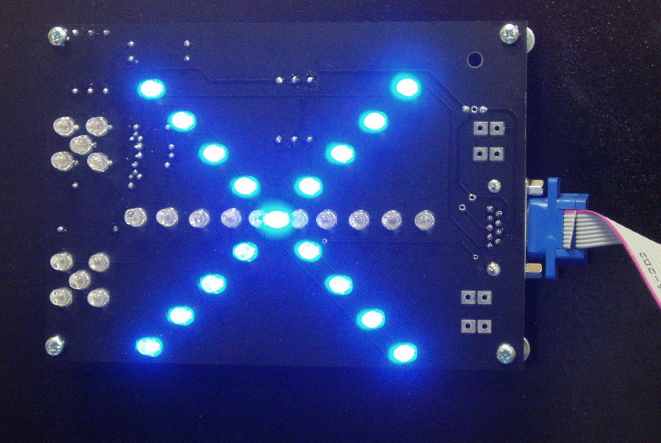

Photo - Mask X with blue X - strike

Strike - Blue selected

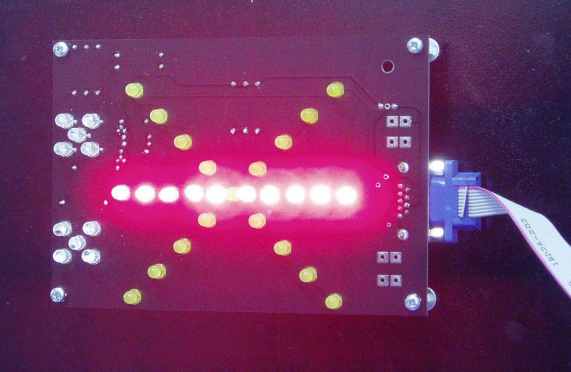

Photo - Mask X with red horizontal line - foul

Foul - Red selected



Fitting guides:
  Mask-X   UPDATED 16 DEC 2022



Ordering information
Part No. Description
CS-M04-01 LED Mask Display-X
